Caliper Shaft Repair Kit 2M0027
| ENM NO | : | 2M0027 |
| OEM NO | : | MCK1168 |
| ÜRÜN ADI | : | Caliper Shaft Repair Kit |
| UYGULAMA | : | DX 195 , DX225 |

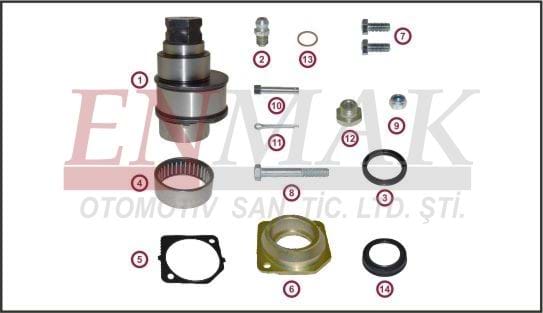

| ENM NO | ÜRÜN ADI | |
| 1 | ET100 | SHAFT |
|---|---|---|
| 2 | EGR1 | GREASE NIPPLE |
| 3 | EK31 | SEAL |
| 4 | ER6 | ROLLER BEARING |
| 5 | ECN1 | GASKET |
| 6 | ET101 | COVER |
| 7 | EC15 | SCREW 8*20 mm |
| 8 | EC17 | SCREW 8*60 mm |
| 9 | EC18 | BOLT NUT M8 |
| 10 | ET91 | DETENT PIN |
| 11 | ES51 | COTTER PIN |
| 12 | EC16 | SCREW |
| 13 | ES50 | WASHER |
| 14 | EK33 | SEAL |
